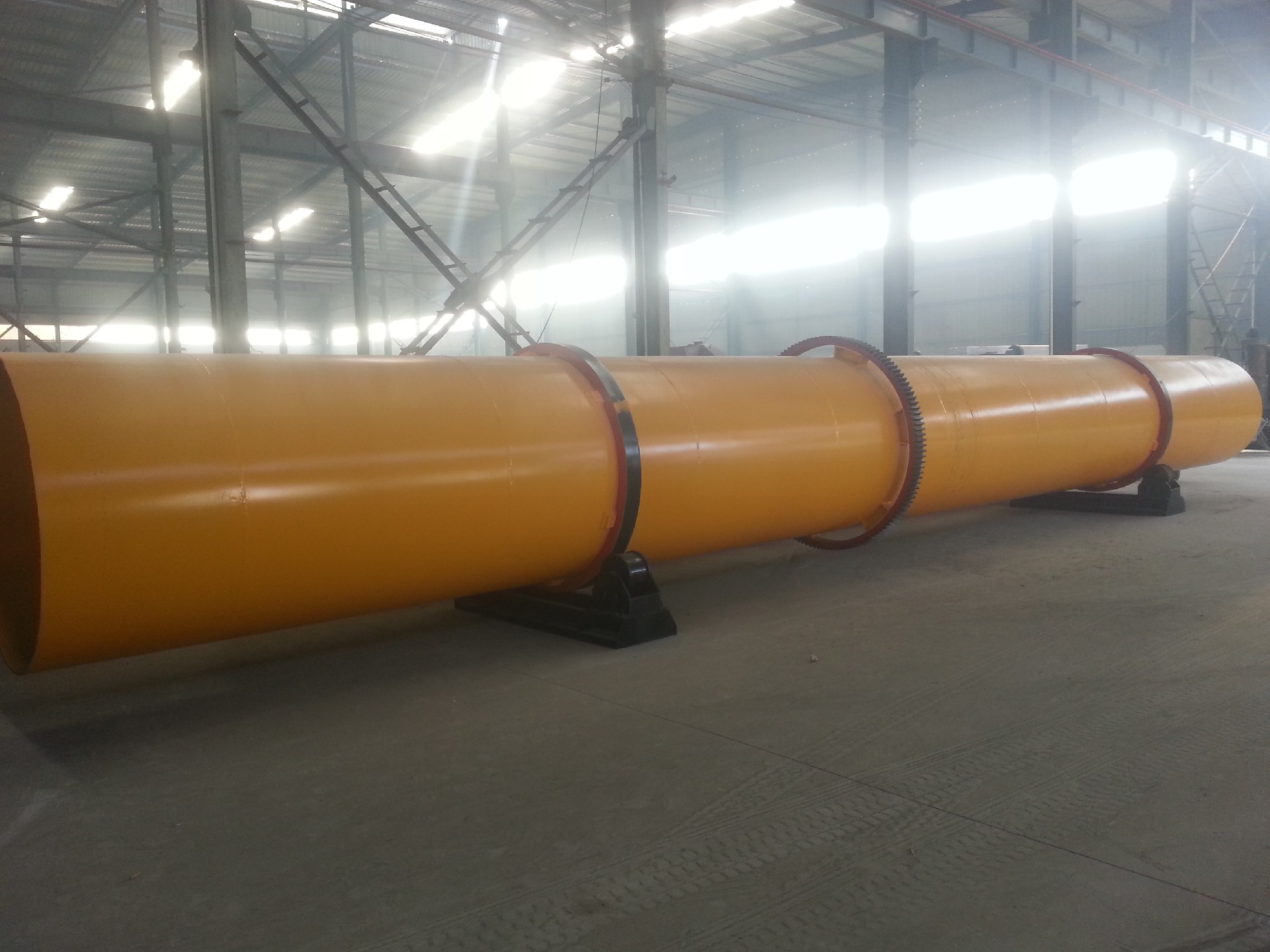

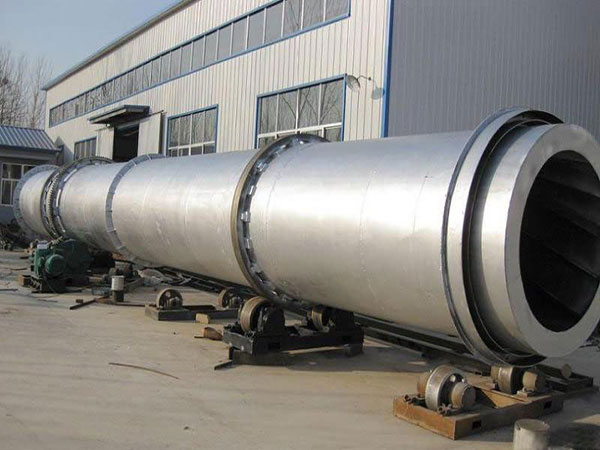

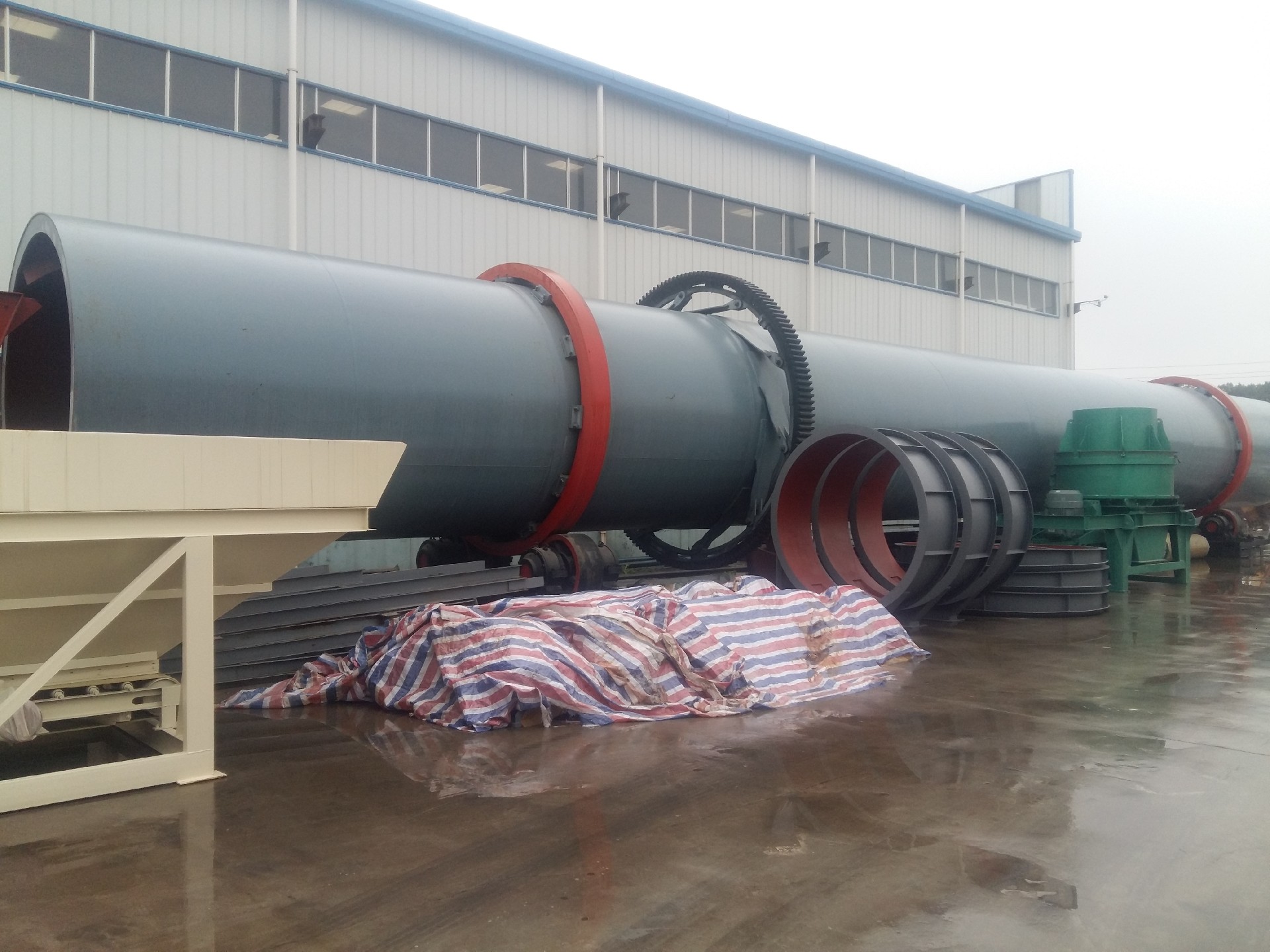

The rotary cooler is a large-scale machine that dissipates heat and reduces moisture in dried materials. The machine is one of the key equipment in the fertilizer industry. It is used to cool the shaped fertilizer particles. When the temperature of the particles is reduced, the moisture content is reduced at the same time, and the particle strength is increased accordingly.
1. Beautiful appearance, simple operation, low energy consumption, longlife, uniform cooling, and easy maintenance.
2. Low investment, quick results, good economic benefits, reliable performance, and can be used for cooling powdered and granular materials.
3. Small power, no three wastes, stable operation, convenient maintenance, reasonable process layout, advanced technology, and low production cost.
4. The distribution and angle design of the lifting plate are beautiful, and the performance is reliable, so the wind energy utilization rate is high, the cooling is uniform, and the number of material cleaning times is small.
The cooler is driven by the main motor, with a belt and a pulley, which is then transmitted to the driving shaft through a speed reducer. The split gears installed on the driving shaft mesh with the large gear ring fixed on the
machine body and work in opposite directions. The material is added from the feed end and passes through the inside of the cylinder. The suction force of the induced draft fan (used in conjunction with this machine) accelerates the air flow inside the cylinder, and the lifting plates installed on the inner wall of the cylinder continuously turn up the material, thereby achieving uniform cooling. The cooled material flows out from the discharge port. As the motor
continues to rotate, the material continues to enter to achieve mass production (Note: this machine is used in conjunction with a dryer). Organic fertilizer cooler, cooling equipment for organic fertilizer production line, chicken manure
and cow dung cooler, semi-wet material cooler
| Spec. (Dia.x Length mm） | Volume（m³） | Capacity (t/h) | Gradient（%） | Highest Inlet Air Temperature（℃） | Rotate Speed(r/min) | Main Motor(kw) |
| Φ600x6000 | 1.7 | 0.5-1.5 | 3～5 | 700～800 | 3～8 | 3 |
| Φ800x8000 | 4.1 | 0.8-2.0 | 3～5 | 700～800 | 3～8 | 4 |
| Φ800x10000 | 5.1 | 0.8-2.5 | 3～5 | 700～800 | 3～8 | 4 |
| Φ1000x10000 | 7.9 | 1.0-3.0 | 3～5 | 700～800 | 3～8 | 7.5 |
| Φ1000x12000 | 9.4 | 1.2-3.2 | 3～5 | 700～800 | 3～8 | 11 |
| Φ1200x8000 | 9 | 1.9-2.4 | 3～5 | 700～800 | 3～8 | 7.5 |
| Φ1200x10000 | 11.3 | 2.2-3.0 | 3～5 | 700～800 | 3～8 | 7.5 |
| Φ1200x12000 | 13.6 | 2.4-3.2 | 3～5 | 700～800 | 3～8 | 7.5 |
| Φ1500x12000 | 21.2 | 4.5-5.7 | 3～5 | 700～800 | 2～6 | 15 |
| Φ1500x14000 | 24.7 | 5.3-6.6 | 3～5 | 700～800 | 2～6 | 15 |
| Φ1500x16000 | 26.5 | 5.7-7.1 | 3～5 | 700～800 | 2～6 | 15 |
| Φ1800x12000 | 30.5 | 6.5-8.1 | 3～5 | 700～800 | 2～6 | 18.5 |
| Φ1800x14000 | 35.6 | 7.6-9.5 | 3～5 | 700～800 | 2～6 | 18.5 |
| Φ1800x16000 | 40.7 | 7.8-10.2 | 3～5 | 700～800 | 2～6 | 18.5 |
| Φ2000x18000 | 56.5 | 8.4-12.3 | 3～5 | 700～800 | 1.5～6 | 22 |
| Φ2000x20000 | 62.8 | 9.0-13.6 | 3～5 | 700～800 | 1.5～6 | 22 |
| Φ2200x16000 | 60.8 | 11.4-15.8 | 3～5 | 700～800 | 1.5～6 | 22 |
| Φ2200x18000 | 68.3 | 12.8-16.2 | 3～5 | 700～800 | 1.5～6 | 22 |
| Φ2200x20000 | 75.9 | 13.0-16.5 | 3～5 | 700～800 | 1.5～6 | 30 |
| Φ2400x16000 | 72.3 | 13.5-16.9 | 3～5 | 700～800 | 1.5～5 | 37 |
| Φ2400x18000 | 81.4 | 17.4-21.7 | 3～5 | 700～800 | 1.5～5 | 45 |
| Φ2400x20000 | 90.4 | 19.3-24.1 | 3～5 | 700～800 | 1.5～5 | 55 |
| Φ2600x24000 | 127.4 | 27.2-34.0 | 3～5 | 700～800 | 1.5～5 | 75 |
| Φ2600x28000 | 148.6 | 28.6-36.2 | 3～5 | 700～800 | 1.5～5 | 75 |
| Φ3000x20000 | 141.3 | 30.1-37.7 | 3～5 | 700～800 | 1.5～5 | 85 |
| Φ3000x25000 | 176.6 | 37.7-47.1 | 3～5 | 700～800 | 1.5～5 | 90 |
| Φ3200x25000 | 201 | 42.9-53.6 | 3～5 | 700～800 | 1.5～5 | 110 |
