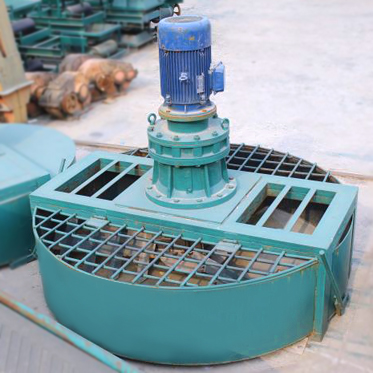

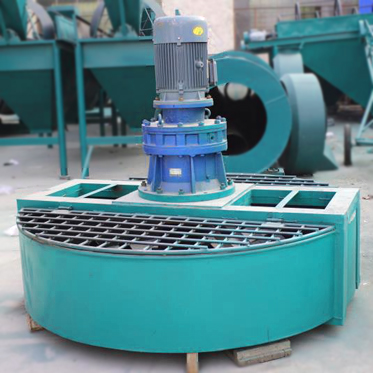

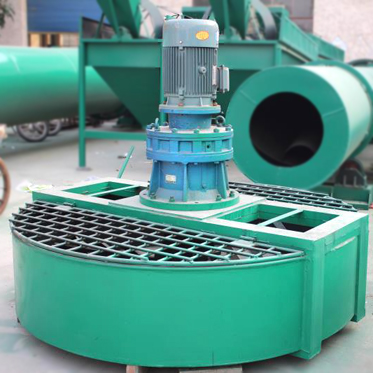

The disc mixer is a mixer dedicated to the fertilizer industry. It is a mixing equipment produced by our company specifically for organic fertilizer mixers. It has advanced design concepts, compact machines, and high practicality. The disc mixer uses carbon steel, polypropylene plate lining or stainless steel plate in the disc according to the materials being mixed. Therefore, it is not easy to stick to the material and is wear-resistant. The vertical mixer uses a cycloidal pinwheel reducer with compact structure, easy operation, uniform mixing, and convenient unloading and transportation.
1. The disk is lined with polypropylene board or stainless steel plate, so it is not easy to stick to the material and is wear-resistant.
2. The cycloidal pinwheel reducer is used, which has a compact structure, convenient operation, uniform mixing, and convenient unloading and transportation.
3. Long service life, fast mixing speed, high mixing uniformity, and thorough unloading.
4. The disc mixer adopts reducer transmission, stable rotation and low noise.
1. Frame part: All working parts of the organic fertilizer vertical disc mixer are installed and fixed on the frame. The frame of the machine is welded with high-quality carbon steel plates and channel steels, and has passed strict
product certification and specific process requirements, and has achieved the purpose of the machine;
2. Transmission connection part: The organic fertilizer vertical disc mixer uses a cycloidal pinwheel reducer to drive the main shaft to rotate, and its main working part uses nylon pins as transmission connectors to transmit drive,
which is convenient for assembly and maintenance;
3. Mixing working part: The transmission wheel transmits to the main shaft through the pin coupling. The organic fertilizer vertical disc mixer evenly turns the material in the mixing chamber, so that the material can be fully
combined, thereby greatly reducing the residual amount of the material.
Model | Capacity（t/h） | Power（kw） | Dimensions of the shape(mm) |
1600 | 2-4 | 7.5 | 1600×1600×1800 |
1800 | 3-5 | 7.5 | 1800×1800×1800 |
2000 | 4-6 | 7.5 | 2000×2000×1800 |
2200 | 6-8 | 7.5 | 2200×2200×1850 |
3000 | 8-12 | 15 | 3000×3000×2000 |
