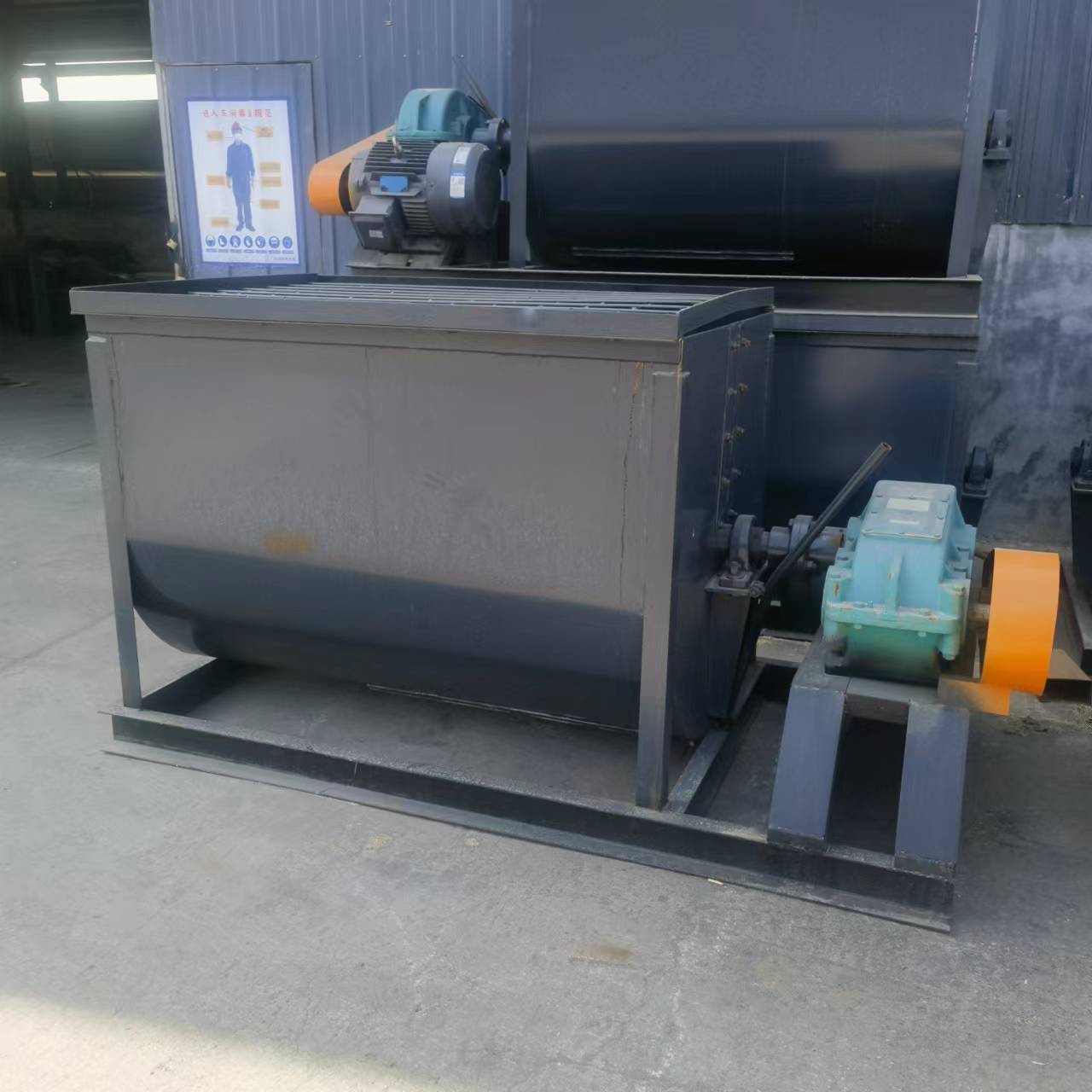

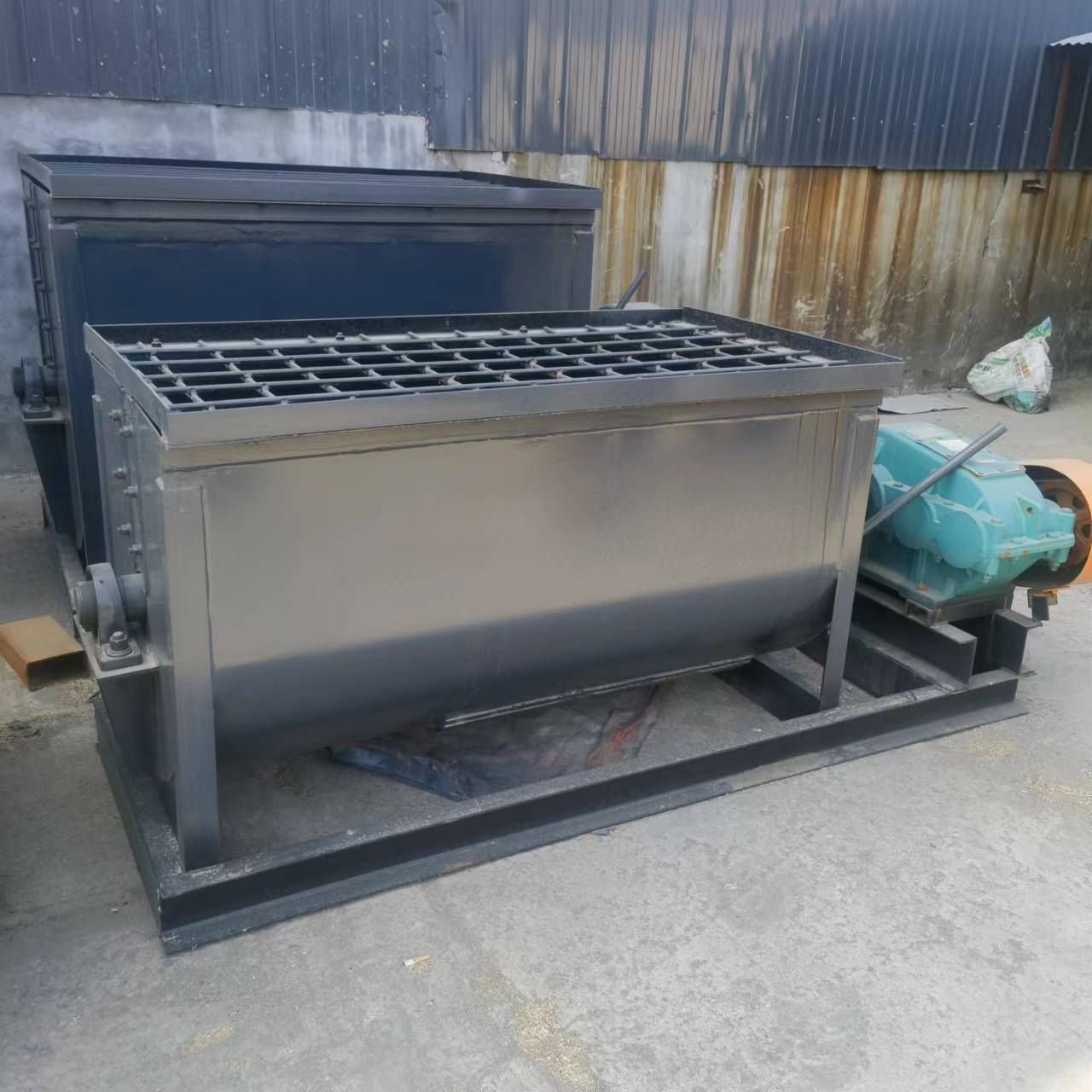

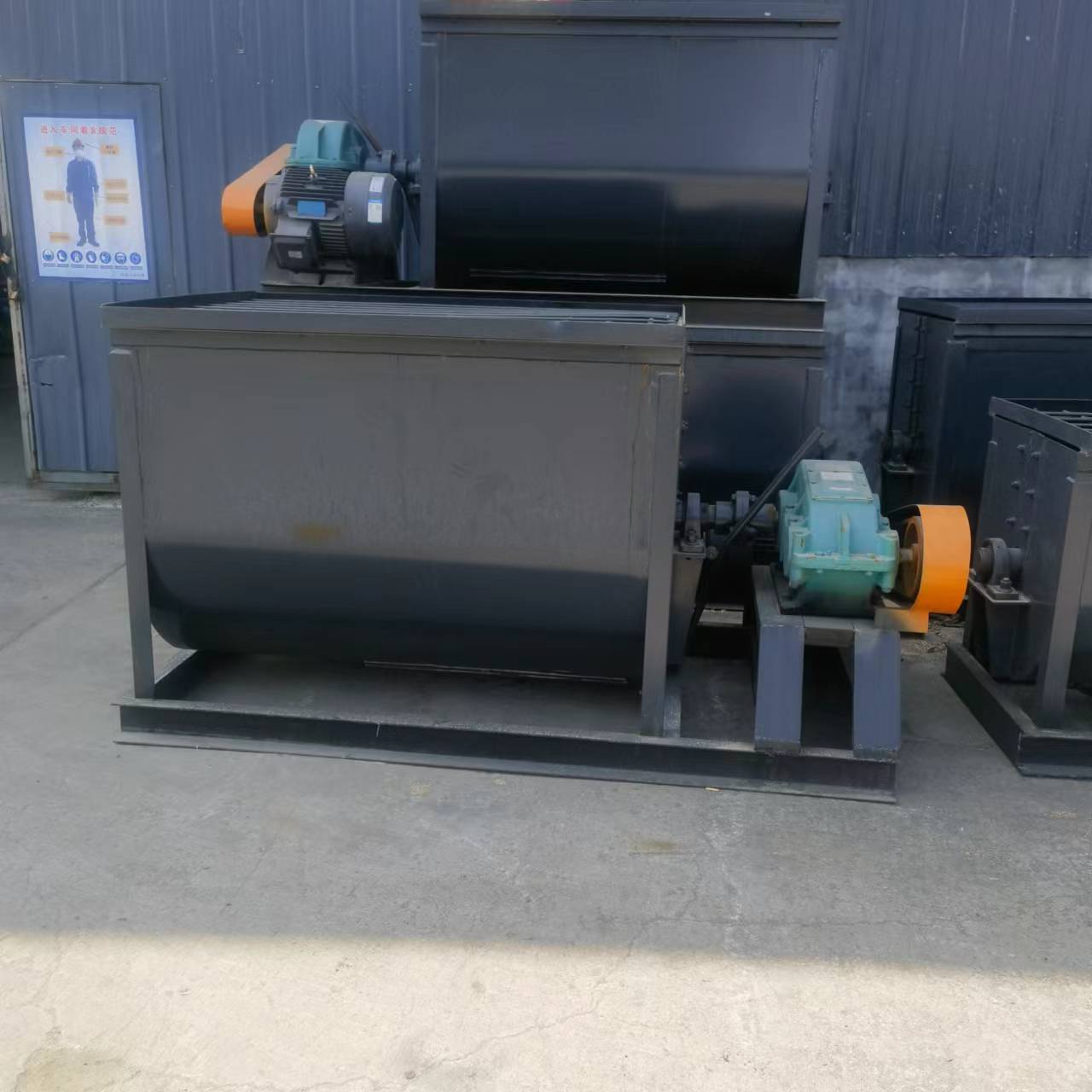

The single-shaft horizontal mixer is a new generation of mixing equipment of our company. It has high mixing uniformity and low residue, and is suitable for mixing compound feed, concentrated feed, and additive premixes. The specific features are: the materials are fully mixed, thereby imp
The single-shaft horizontal mixer is a new generation of mixing equipment of our company. It has high mixing uniformity and low residue, and is suitable for mixing compound feed, concentrated feed, and additive premixes. The specific features are: the materials are fully mixed, thereby improving the mixing uniformity; the novel rotor structure is adopted, and the gap between the rotor and the shell can be adjusted to near zero, which effectively reduces the material residue; the machine is equipped with a grease adding pipeline, the overall structure is more reasonable, the appearance is beautiful, and the operation and maintenance are convenient.
1. Make the materials fully mixed, thus improving the mixing uniformity.
2. Adopting a novel rotor structure, the minimum gap between the rotor and the bright body can be adjusted to near zero, effectively reducing the amount of material residue;
3. Can crush larger materials, the overall structure is more reasonable, the appearance is beautiful, and the operation and maintenance are convenient for installation and maintenance.
4. Adopting reducer transmission, the rotation is stable and the noise is low.
When the single-shaft horizontal mixer is working and mixing, the materials in the machine are acted upon by the two rotors in opposite directions, performing a compound motion. The blades drive the materials to rotate
counterclockwise along the inner wall of the machine trough, and on the other hand, drive the materials to flip left and right. In the weightless area where the two rotors overlap, no matter what the shape, size, and density of the
materials are, the materials can float up and be in a state of instant weightlessness. This causes the materials to flip in an all-round continuous cycle in the machine trough, and to shear each other in an interlaced manner,
thereby achieving a quick, gentle and uniform mixing effect.
Model | Capacityt/h） | Stirring speed(Y/mm） | Power（kw） |
7015 | 2-3 | 46 | 7.5 |
9015 | 3-5 | 39 | 11 |
1630 | 10-15 | 21 | 22 |
